Name: Heavy Duty Wire Rope Handle Hoist with 8-54KN Rated Lifting/Pulling for Power Line Construction
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: ไฮสปีด408
Price: 285,715.00 USD
Availability: InStock

คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง

คุณสมบัติ

ข้อมูลจำเพาะ

ชื่อ: ด้ามจับลวดเชือกรอก

หมายเลขสินค้า: 14183-14186

แบบอย่าง: ไฮสปีด408

การยกระดับ/ดึง: 8-54KN

การเดินทางครั้งหนึ่ง: >40

เส้นผ่านศูนย์กลางของเชือกเหล็ก: 8.3-20มม

ความยาวมาตรฐานของเชือกเหล็ก: 20ม

น้ำหนักสุทธิ: 6.8-52กก

เน้น:

Heavy Duty Wire Rope Handle Hoist

8-54KN Rated Lifting/Pulling Manual Chain Hoist

Power Line Construction Lever Hoist

ข้อมูลพื้นฐาน

สถานที่กำเนิด: หนิงโบ

ชื่อแบรนด์: Suntech

ได้รับการรับรอง: ISO

หมายเลขรุ่น: ไฮสปีด408

การชำระเงิน

รายละเอียดการบรรจุ: กรณีไม้อัด

เวลาการส่งมอบ: 3-7 วัน

เงื่อนไขการชำระเงิน: แอล/C,ที/ที

สามารถในการผลิต: 1,000 ชิ้น/เดือน

คลังภาพ

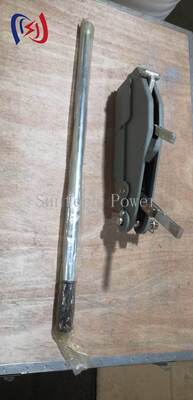

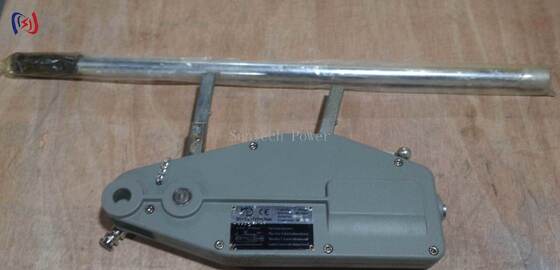

Heavy Duty Wire Rope Handle Hoist with 8-54KN Rated Lifting/Pulling for Power Line Construction

รายละเอียดสินค้า

Heavy Duty Wire Rope Handle Hoist for Lifting and Pulling Tasks in Power Line Construction

Product Specifications

Item No.	14183	14184	14185	14186
Model	HSS408	HSS416	HSS432	HSS454
Rated Lifting/Pulling (KN)	8/12.5	16/25	32/50	54
Once Journey (MM)	>=40	>=40	>=16	>=20
Diameter of Steel Rope (MM)	Φ8.3	Φ11	Φ16	Φ20
Standard Length of Steel Rope (M)	20	20	20	20
Net Weight (KG)	6.8	13	25	52
Hand Wrenching at Rate Load (N)	<=343	<=400	<=441	<=550
Encasement Dimension (MM)	420106250	530126315	660160360	930390150

Product Overview

The Wire Rope Handle Hoist, commonly known as a manual chain hoist or lever hoist, is an indispensable mechanical lifting and pulling device for a wide range of applications in the power construction and utility industry. This robust tool provides a reliable, portable, and powerful solution for moving heavy loads where electrical power is unavailable, impractical, or where precise control is paramount. Utilizing a hand-operated lever to drive an internal gear mechanism, it multiplies the operator's force to lift, lower, pull, or tension equipment, materials, and components with exceptional control and safety. From positioning transformers and switchgear in substations to pulling conductors into place or performing maintenance on transmission towers, the wire rope handle hoist is a fundamental tool for enhancing both safety and efficiency on the job site.

Key Features & Benefits

Powerful Mechanical Advantage
The core principle of the handle hoist is its ability to provide a significant mechanical advantage. Through an internal system of gears and a ratchet, the force applied by the operator on the handle is multiplied many times over. This allows a single worker to safely lift, lower, or pull loads that would otherwise require multiple people or powered machinery, making it an incredibly efficient tool for its size and weight.
Precise Load Control and Positioning
One of the greatest benefits of a manual hoist is the fine level of control it offers. The operator can inch the load up or down with millimeter precision, allowing for careful alignment and placement of heavy electrical equipment like circuit breakers, insulators, or cable reels. This precision is critical when working in tight spaces or when positioning sensitive and expensive components.
Complete Operational Independence
As a purely mechanical device, the wire rope handle hoist requires no electricity, batteries, compressed air, or hydraulic power to operate. This makes it perfectly reliable in remote locations, during power outages, inside de-energized substations, or at any job site where bringing in external power is a challenge. Its readiness and reliability are unmatched in scenarios where other equipment might fail.
Enhanced Job Site Safety
Safety is a primary feature of a well-designed hoist. The integrated ratchet and pawl system provides a positive, non-slip hold on the load. Even if the operator releases the handle, the load is securely held in place, preventing dangerous free falls. This fail-safe design is essential for protecting both personnel and valuable assets during lifting operations.
Durability for Demanding Environments
Built with a hardened steel housing, high-strength alloy gears, and a durable galvanized or stainless steel wire rope, these hoists are engineered to withstand the rigors of construction sites, outdoor weather, and industrial use. They are resistant to corrosion, impact, and wear, ensuring a long service life with minimal maintenance when used within their rated capacity.
Portability and Ease of Use
The compact and self-contained design makes the hoist highly portable. It can be easily carried by its handle or transported in a tool bag to the point of need. Setup is quick and straightforward; it simply requires a secure anchor point above the load. Its intuitive lever operation requires minimal training, allowing crews to put it to work immediately.
Versatility in Utility Applications
The applications in the power industry are extensive. It is used for lifting and positioning equipment in substations, pulling and tensioning conductors during line work, installing and removing insulators, handling materials on transmission towers, and for general rigging and pulling tasks during maintenance and construction. Its ability to work in both vertical and horizontal orientations adds to its utility.
Cost-Effective Material Handling Solution
Compared to powered alternatives, a manual wire rope hoist has a lower initial cost, no ongoing energy expenses, and typically requires less maintenance. It delivers exceptional value by improving workflow efficiency, reducing labor requirements for moving heavy objects, and preventing damage from improper handling, offering a rapid return on investment.
A Foundational Tool for Professional Crews
For any electrical contractor, utility lineman, or maintenance technician, a reliable wire rope handle hoist is a fundamental piece of equipment. It empowers small crews to tackle big jobs safely and efficiently, embodying the principle of working smarter, not just harder. It is a tool that no serious professional in the field should be without.

By choosing a high-quality Wire Rope Handle Hoist, you are investing in a versatile, reliable, and safe mechanical partner that will deliver performance and value on countless job sites for years to come.
