สถานที่กำเนิด: | ประเทศจีน |
ชื่อแบรนด์: | Suntech |
ได้รับการรับรอง: | ISO |
หมายเลขรุ่น: | GR1000 |
จำนวนสั่งซื้อขั้นต่ำ: | 150pcs |
---|---|
ราคา: | Get the lastest price |
รายละเอียดการบรรจุ: | กล่องหรือพาเลท |
เวลาการส่งมอบ: | 25-30 วันหลังจากชำระเงิน |
เงื่อนไขการชำระเงิน: | L / C, T / T, Wester N Union |
สามารถในการผลิต: | 400 ชิ้นต่อเดือน |
แหล่งพลังงาน: | มือ | แบบอย่าง: | GR1000 |
---|---|---|---|
ความจุ: | 1,000 กก. 2200 ปอนด์ | ชื่อผลิตภัณฑ์: | 2200lbs Worm Gear Hand Winch |
น้ำหนัก: | 38กก. | อัตราส่วนการส่ง: | 23.75:1 |
แสงสูง: | worm gear hand winch,worm hand winch |

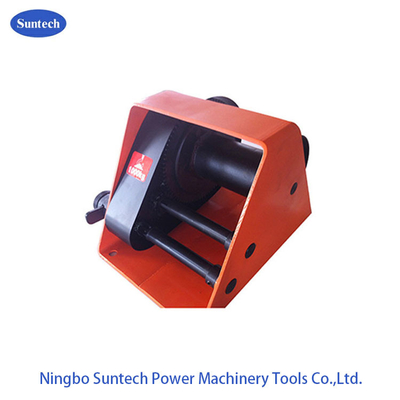

High Precision GR1000 Red Hand Worm Winch , 2200 Lb Worm Gear Hand Winch
The Advantage of our Worm Hand Winch
1, Gear heat treatment
2, Gears are alloy steel and electroplated to resit corrosion
3, Mechanical components enclosed for protection and safety.
4, Strong removable handles
5, High precision construction minimises gear noise
Product Details
1. select high-quality thick hook
Hook made of high grade alloy wear resistant material used for longer, not broken.
2. High quality solid woven wire rope
Select high-quality bold solid wire rope, have bearing material, fine quality, not the advantages of the fracture.
3. One-piece casting process
One-piece casting technology on the fuselage, sturdy and durable, material thick, plastic spraying neat and bright.
4. Gear made of special alloy steel
Gear made of special alloy steel, after high temperature quenching, greatly improving the use of strength and toughness
Specifications in details:
MODEL | GR1000 |
Capacity(kg) | 1000 |
Steel Wire Rope(mm) | 9 |
Length(m) | 25 |
Layer Number | 4 |
Net Weight(kg) | 38 |
A(mm) | 412 |
B(mm) | 485 |
C(mm) | 300 |
D(mm) | 300 |
E(mm) | 350 |
Φx(m) | 9x25 |
Transmission Ratio | 23.75:1 |
ผู้ติดต่อ: Peter
โทร: 86-13958364836
